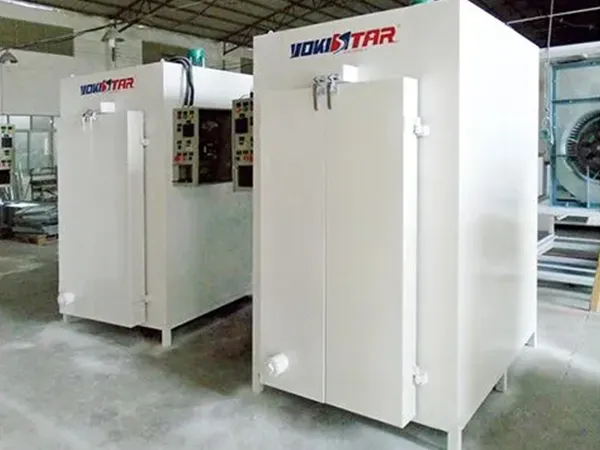

Industrial Paint Curing Oven

Industrial ovens for drying liquid paints and curing powder-coated finishes

A wide range of industrial curing ovens is available for drying liquid coatings and curing powder-coated surfaces with consistent, reliable performance. The ovens can be configured according to the heating source, including electric heating elements, gas-fired systems, diesel-fired heating or infrared modules. Custom solutions for large-scale production are also available, such as batch-type ovens, tunnel-type ovens and continuous curing systems.

Features

Rock Wool well-insulated walls and roof plated with galvanized steel
High-capacity fans and an advanced duct system allows even heat distribution and improve energy efficiency and temperature stability
A modern but simple control panel allows easy and efficient operation. The operator has complete control and are allowed to set parameters that match different coating materials and curing requirements.
An integrated filtration system helps minimize airborne contamination inside the oven. Filters are easily replaceable for simple maintenance

Request a Quote

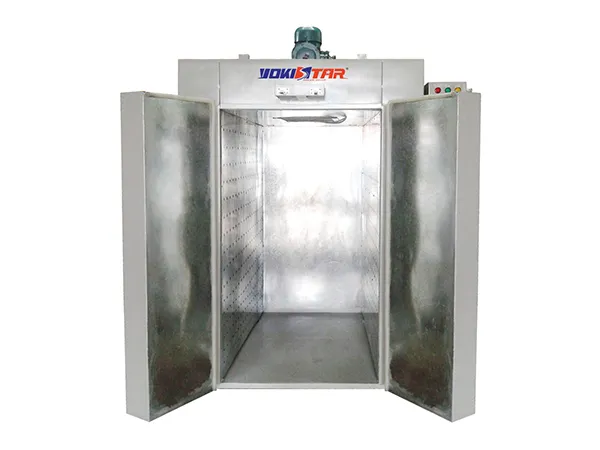

EHP Curing Oven

Internal dimensions: 1.5 × 0.8 × 1.6 m (L × W × H); customizable to any required dimension
Outside size: 1.88 × 1.26 × 2.0 m (L × W × H)
Temperature range: ambient to 200°C, adjustable
Heating method: electric heating tube
Air circulation: one 1.5 kW direct-drive fan, 4,000 m³/h air capacity
Insulation: 150 mm rock wool with galvanized steel wall panels
Control panel functions: main power, automatic temperature control, timer settings, fault indicator, hour meter, emergency stop and temperature limiter

Request a Quote

GP Curing Oven

Internal dimensions: 6 × 2 × 3 m (L × W × H); customizable to any required dimension
Temperature range: ambient to 300°C, adjustable
Heating method: LPG or LNG, supplied by the user
Two workpiece trolleys made from 40 × 40 mm square steel, fitted with high-temperature-resistant casters
Bottom rail made from 50 × 50 mm angle steel; top rail made from 1.5 mm galvanized steel with twelve stainless-steel bearings supporting the top trolley
Heat generated through natural gas heating: six gas infrared oven heads installed evenly at the bottom, connected to supply lines and individually controlled by solenoid valves
Insulation: 150 mm rock wool with galvanized steel wall panels
Control panel functions: main power, individual oven on/off controls, two temperature controllers, automatic temperature control and timer settings

Request a Quote

Customization

Every curing oven is engineered according to project requirements. Key factors include total heating capacity, the shape and size of the product being cured, exhaust system design for removing solvent fumes and the layout of heating elements to maintain uniform temperature throughout the chamber. Our engineering team can design the oven according to your workflow, space and material specifications.
