    Industrial spray booths for wood cabinets and furniture finishing

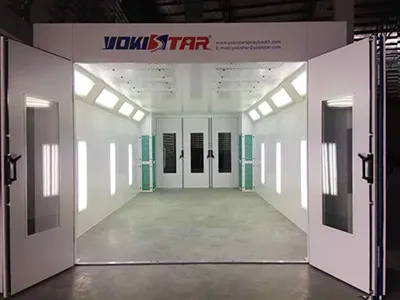

    Woodworking paint booths are commonly used in furniture shops and cabinet workshops where wood pieces need a clean, steady workspace for spraying. The booth helps keep dust away from freshly coated surfaces and gives operators enough room to move around doors, drawers, panels and other items without disturbing the finish. Lighting inside the booth is arranged to brighten the whole work area, especially the spots where wood grain, edges and panel joints are checked. This helps operators see how the varnish or color coat is settling on each piece.

    Some workshops add a drying section when they need coatings to cure faster. The air in these drying rooms can be heated with gas, diesel, electricity or steam, depending on the setup of the shop. This helps speed up production while keeping the finish smooth and consistent across different types of wood.

    Request a Quote
    Customized Airflow Types

    Different woodworking paint booth models use different airflow patterns, and the choice usually depends on budget, workshop layout or the operator’s preference.

    Cross Draft Booth

    Fresh air enters through the filter at the front of the booth and then moves straight toward the exhaust unit at the back. The airflow runs directly from the front to the back, which makes this one of the simplest booth designs. It’s a practical option for smaller workshops that can’t spare much room for a larger setup.

    Side Downdraft Booth

    Fresh air enters from the front of the booth and moves downward toward exhaust points on the rear wall or the side panels. With the airflow moving this way, overspray is pulled away more effectively and the coating lands more evenly on the wood.

    Customer Case

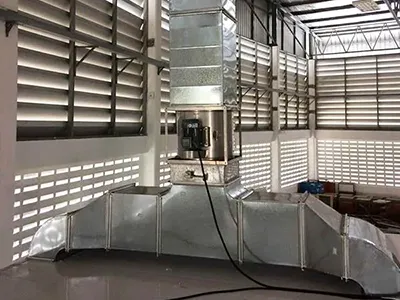

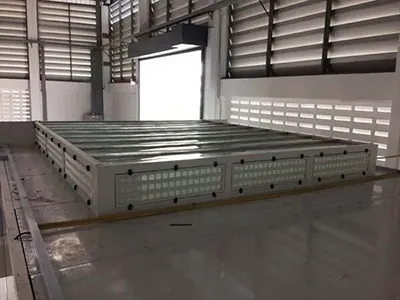

    YNZ Interior Co., Ltd. from Thailand purchased a YS-PB4 furniture paint booth for their furniture finishing projects. We arranged a technician to handle the paid installation, and the booth was fully set up in just three days. The customer told us they were happy with both the equipment and how smoothly the installation went.

    • Woodworking Paint Booth
    • Woodworking Paint Booth
    • Woodworking Paint Booth
    • Woodworking Paint Booth
    Related Products
    We’re Here to Help

    Fill in the form below and our specialists will reach out to assist you.

    Browse Equipment by Category

    The woodworking paint booth is designed for wooden products of different sizes, so it works well for chairs, tables, cabinet doors and similar pieces. It supports clear coats, glossy finishes, primers and topcoats, all in a clean and bright space that helps keep dust away and gives the operator better visibility while spraying.

    Yes. When faster drying is needed, a drying room can be added to the setup. The air inside can be heated with gas, diesel, electricity or steam, which helps wood furniture and other wood products cure more quickly and consistently.

    Woodworking paint booths with drying sections can be designed with two airflow layouts: crossflow or side-down draft. With the crossflow airflow design fresh air enters through the filters at the front and moves straight across the booth toward the exhaust section at the back. In the side-down draft airflow layout the air also enters from the front, but it gets pulled down or sideways depending on where the exhaust units are placed (back wall, side wall or lower section).

    Both options handle overspray without problems. The main difference is the way air moves inside the booth. In a crossflow layout, the air travels straight from the front to the back. In a side-down draft layout, the air gets pulled down or to the sides, so the spray area stays clearer and more even, especially when working with wider or taller wooden panels.
