Automotive frame straightening equipment is widely used in collision repair. It restores structural strength, chassis geometry and the alignment of critical systems on accident-damaged vehicles, ensuring that the car returns to a safe and reliable condition. For vehicles with major impact damage, high-quality repair is nearly impossible without a professional frame straightening system. It helps the repair process move more smoothly and ensures the work meets industry and insurance expectations, which is why it has become a standard tool in most collision-repair facilities.

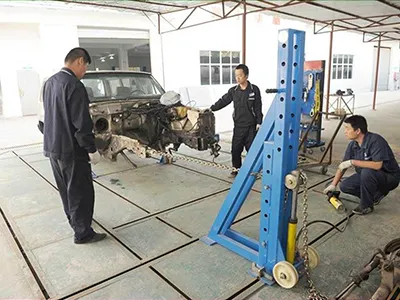

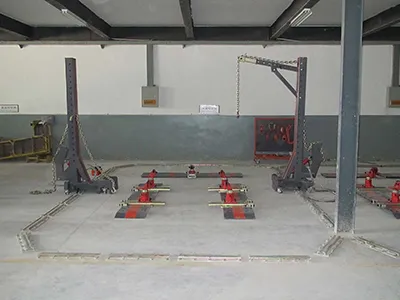

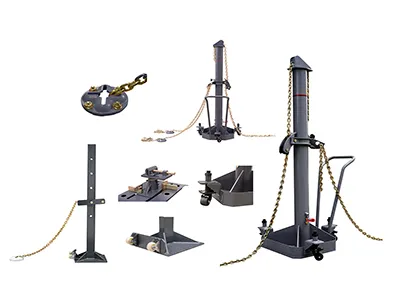

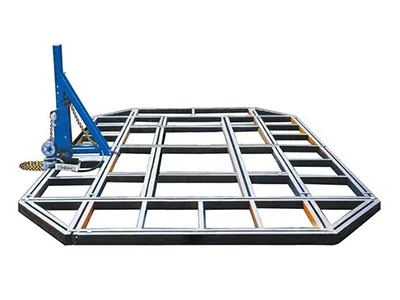

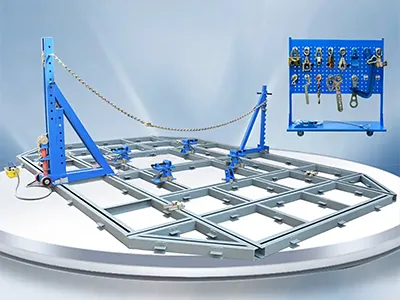

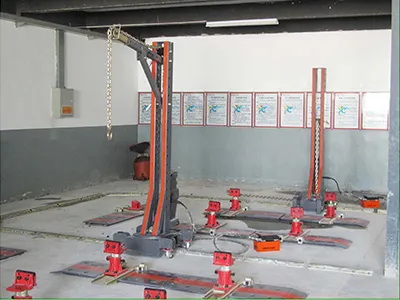

Our frame straightening systems are available in several configurations, including floor-anchored platforms, full-platform straightening benches and simplified frame-type designs. Please contact us for detailed specifications and configuration options.

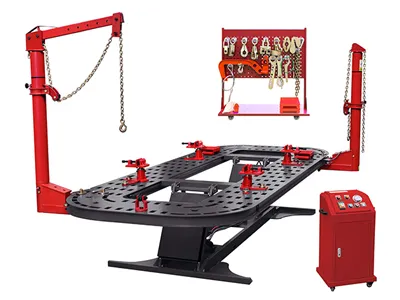

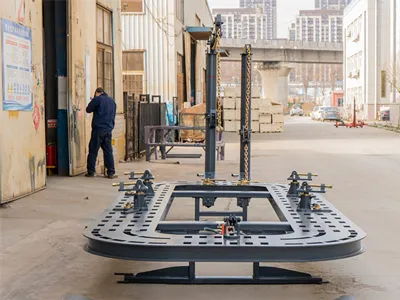

| Model No. | ||
| Material | Manganese Steel | Manganese Steel |

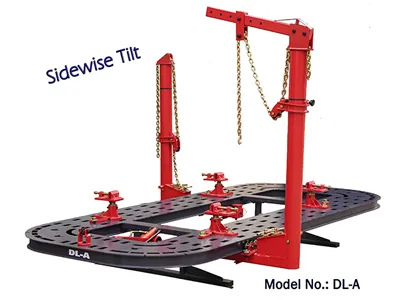

| Lifting Way | Sidewise Tilting | Whole-Body Tilting |
| Platform Length | 5200 mm | 5200 mm |
| Platform Width | 2100 mm | 2100 mm |
| Platform Height | 520 mm | 300 ~ 1000 mm |
| Tower Pulling Capacity | 2 x 10 tons | 2 x 10 tons |
| Hydraulic Power | 70 MPa | 70 MPa |
| Radius of Tower | 360° | 360° |
| Lifting Capacity | 3500 kg | 3000 kg |
| Gross Weight | 1950 kg | 1950 kg |

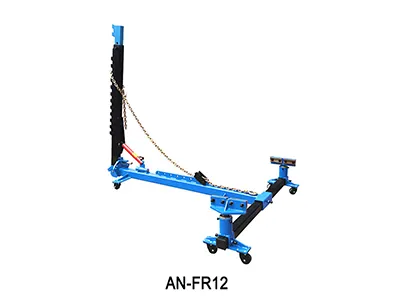

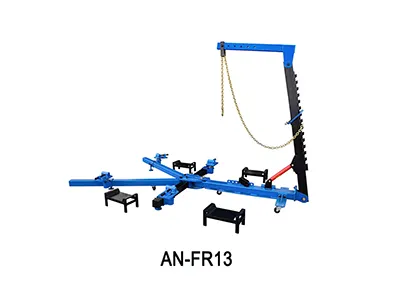

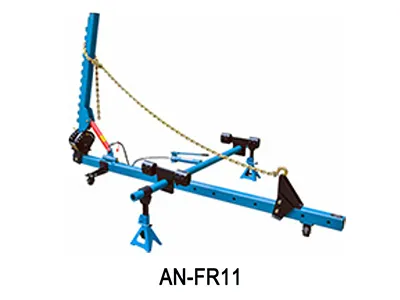

| Model No. | |||
| Deck Length | 3000mm | 2100mm | 3650mm |
| Deck Width | 2000mm | 1900mm | 2000mm |
| Deck Height | 205mm | 205mm | 210mm |
| Tower Pulling Force | 49KN | 49KN | 98KN |
| Hydraulic Pressure | 70Mpa | 70Mpa | 70Mpa |
| Air Supply | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Net/Gross Weight | 285/305kg | 320/340kg | 560kg |
| Package Size | 3080x450x450mm (LxWxH) in one package | 2300x700x400mm (LxWxH) in one package | 2250x700x490mm (LxWxH) in one package |
