    Industrial spray booths for heavy equipment and industrial applications

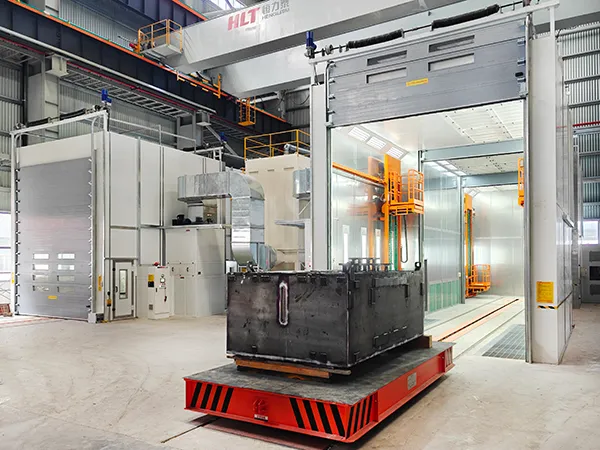

    Large equipment paint booths are used to coat heavy machinery and oversized industrial parts, such as construction, mining and agricultural equipment or large steel structures. The paint booths provide enough height and space for operators to move safely around construction equipment, mining machines or other oversized industrial parts. Airflow, whether downdraft, side draft or semi downdraft, moves the overspray away from the equipment so the surface stays cleaner and easier to coat. Bright lighting helps operators see corners, joints and taller sections with more clarity, which is important when working on large metal parts. Keeping the temperature and humidity steady also helps the coating dry the way it should, without changes in texture or gloss. Heavy machinery is normally moved into the booth with rails or transfer carts, which lets operators move big units into position safely and without lifting.

    Request a Quote
    Main Features

    Ventilation

    The ventilation system uses high-efficiency filters that can handle heat, dust, and paint mist. Their large surface area and layered structure allow air to flow easily while capturing small particles. Because these filters last longer, they require less frequent replacement, which helps to keep huge paint booth operating expenses under control.

    Lighting

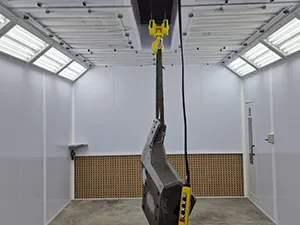

    PHILIPS tri-phosphor tubes fitted behind tempered safety glass illuminate the plenum and sidewalls brightly and evenly. This configuration provides operators with great view throughout the booth, and external access can be added to make maintenance easy. The lighting boxes are built of powder-coated color steel and employ electric ballasts to provide consistent illumination.

    Wall Panels

    The wall panels use a double-skinned structure with a tongue-and-groove interlock. The insulation can be EPS, PU or rock wool depending on the needs of the project, and both sides are lined with color-coated steel sheets. This design improves strength, insulation and overall durability.

    Filtration System

    The filtration system uses high-efficiency filters to capture dust and overspray while allowing air to flow freely. They have a longer service life, so replacements are less frequent, and the booth costs less to maintain.

    Additional Features

    • 95% filtration efficiency for overspray and dust
    • PHILIPS lamps, BELIMO dampers and RIELLO burners available
    • Electrical components meet CE standards
    • 24-month warranty
    • Bubble-film packaging for sea transport, with optional steel-tray packaging
    Cases
    • Large Equipment Paint Booth
    • Large Equipment Paint Booth
    • Large Equipment Paint Booth
    • Large Equipment Paint Booth
    Related Products
    We’re Here to Help

    Fill in the form below and our specialists will reach out to assist you.

    Browse Equipment by Category

    Yes. These large-format spray booths can be tailored to match the needs of different industrial projects. The available options include downdraft layouts, dry-filter designs and booths built specifically for trucks and buses. These setups work well with different kinds of heavy equipment and large structures, so the booth can handle many types of coating jobs without problem.

    The ventilation system in these industrial spray booths uses high-efficiency filter media designed to handle heat, dust and paint particles. The filters have a large surface area and a progressive-density structure, which helps them trap more contaminants while keeping airflow resistance low. Since the filters last longer and do not need to be replaced as often, the overall operating cost stays lower during daily use.

    Yes. The industrial spray booths use Philips tri-phosphor tubes installed in the plenum and side walls, protected by tempered-glass covers. This setup provides bright and stable lighting across the entire workspace. Even corners, recessed areas and higher sections of large equipment can be seen clearly. Optional external maintenance walkways are also available, making the lighting easier to service while maintaining accurate spraying conditions.
