Open Face Paint Booth

Industrial spray booths with open front for easy access and movement of large workpieces

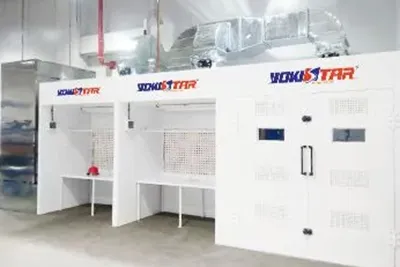

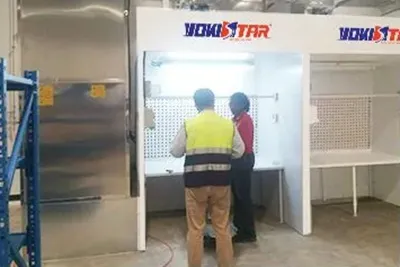

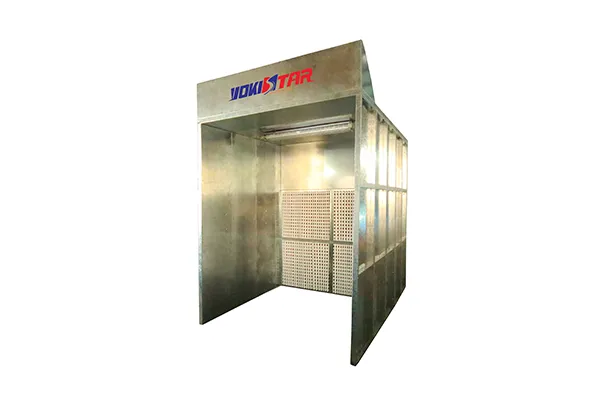

Open face paint booths are used in workshops that need an open entry for spraying large or irregular workpieces. Instead of a fully enclosed structure, the front is open and the booth may have only partial walls or a simple canopy. The airflow pulls the overspray toward the filters at the back, which helps keep dust and paint mist from spreading. Open-face booths are commonly used in furniture workshops, small production lines and automotive parts finishing. The open front makes it easier for operators to move pieces in and out and work with items of different sizes without being limited by enclosed walls.

Request a Quote

Applications

Workpieces that do not require strict finishing conditions Used for primer and anti-rust coatings, as well as sections that do not require a high level of gloss or surface cleanliness.
Small or temporary spraying tasks Used for small projects or quick spraying tasks inside the workshop. It’s helpful when only a basic area is needed to apply a coat and a fully enclosed booth is not required.
On-site repair work Often used when large equipment or fixed structures can’t be moved into a closed spray booth. Thanks to the open layout, operators can handle small touch-ups or repair work directly on site without having to move the piece.

Advantages

Open-face booths cost less because their structure is very simple. Most setups only use a light canopy, a small exhaust fan and a simple filter section. Because of that, the upfront cost stays much lower than in a fully enclosed booth.

The open design provides more space to work with long, wide or tall pieces, since there are no fixed walls in the way. It is a practical option for oversized parts that cannot be placed inside a closed booth.

Most of the airflow moves naturally, and a small exhaust fan is used only when extra extraction is needed. Energy use stays low, and the ventilation system is easy to maintain.

The open front allows workpieces to move in and out easily, which is useful when using cranes, forklifts or other lifting equipment to position heavy or large items.

Daily use is easier than in enclosed booths because there aren’t as many settings to manage. It is suitable for spraying tasks that don’t need very strict control of temperature or airflow.

Main Configuration

Wall Panels
The booth is built with 1.5 mm galvanized steel panels that are shaped and secured with screws. The structure is sturdy and easy to assemble, without needing anything too complex.

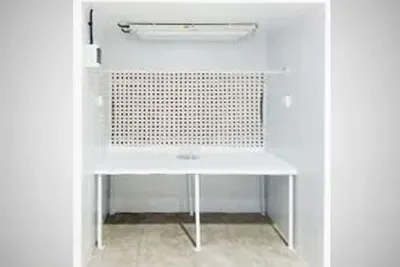

Lighting Fixtures
The YS-OF2 comes with one light fixture, while the YS-OF3 includes two. Each fixture has two 36-watt explosion-proof tubes that provide steady, reliable illumination for spraying operations every day.
Exhaust System

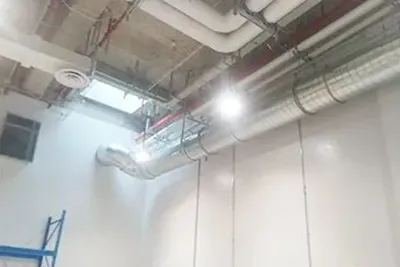

An explosion-proof axial fan handles the air removal and helps keep overspray and fumes from building up in the work area. This adds safety when working with solvent-based coatings.

What types of workpieces are suitable for open paint booths?

Open-type paint booths are suitable for tasks where the coating process doesn’t require a fully controlled environment. Ideal for priming, anti-rust coatings and projects where the final surface doesn’t need a high-gloss look or a perfectly clean finish. They’re also practical for temporary jobs, small-batch spraying, or on-site touch-ups of large equipment.

Compared with enclosed paint booths, what cost advantages do open face paint booths offer?

Open face paint booths are much more affordable to build, install and maintain. These booths use a simple structure with a canopy, an exhaust fan and basic filters, which keeps the initial cost low. They use less energy too, since most of the airflow comes from natural ventilation and the exhaust fan doesn’t need a high-power motor. For workshops that need to keep costs under control, they’re a more affordable option compared to enclosed booths.

Can open paint booths handle oversized workpieces?

Yes. Open face paint booths can handle very large components because there are no fixed walls limiting the space. The open face layout gives enough room for extra-long, extra-wide or extra-tall parts, and moving them in and out is much easier compared to enclosed structures.
