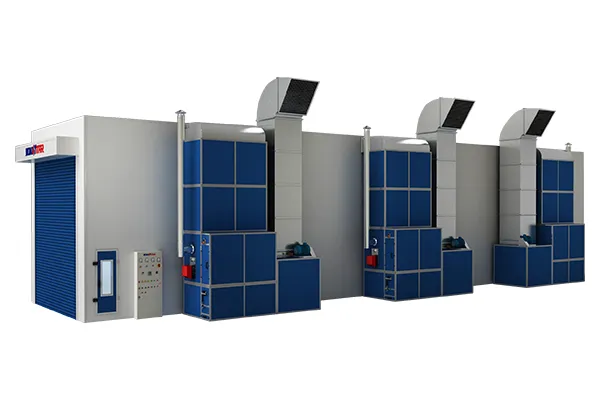

    Industrial spray booths for large vehicle finishing

    When working on special-purpose vehicles, construction machinery or firefighting units, the coating process needs to match the size and shape of these vehicles. These vehicles are often very tall, very long or shaped in a non-standard way, so the airflow, heating and access points need to be set up to match their size. Open spraying areas and regular automotive booths usually don’t have enough height, booth length or airflow strength to deal with this type of work. Large spray booths designed for buses and trucks offer the space and control needed for these projects. Their extended booth length, reinforced airflow and higher heating capacity support consistent coating on long or uneven surfaces. Full-size doors and side access points also make it easier to reach different parts of the vehicle during both manufacturing and repair work. With the right heat distribution, the curing stage becomes more stable, which helps the coating last longer on vehicles that work outdoors or under heavy use.

    Request a Quote
    Applications
    • City buses
    • Long-distance coaches
    • Heavy-duty trucks
    • Armored vehicles
    • Military transport vehicles
    • Subway cars
    • Rail car shells
    • Construction vehicles (excavators, cranes, etc.)
    • Agricultural machinery (tractors, harvesters, etc.)
    Main Configuration
    Pit
    Airflow Method By pit-extraction airflow
    Floor Arrangement Two pit rows built with 30×4 mm flat bars and 10 mm twisted-steel grating, galvanized finish. Load capacity: 600 kg per wheel. Each pit measures 12,650 × 760 mm (L × W)
    Supporting Frame Square steel tube, 40 × 80 mm
    Floor Filter Fiberglass floor filter,G3 Grade (EN779), model PA-50,filtering area 19.2 m²
    Spray Booth Cabin
    Internal Dimensions 15,000 × 5,000 × 5,000 mm (L × W × H)
    External Dimensions 15,144 × 6,896 × 5,600 mm (L × W × H)
    Entrance Door Electric roller door, 4,000 × 4,600 mm (W × H), aluminum frame with PU insulation
    Personnel Door Two doors, 800 × 2,000 mm (W × H), each with a viewing window and color-steel frame
    Wall Panels 70 mm panel thickness, 1,150 mm width. EPS insulation with 0.426 mm color-steel sheets inside and outside. Tongue-and-groove interlock, fully steel-clad
    Roof Panels 50 mm panel thickness, 1,150 mm width. EPS insulation with 0.426 mm color-steel sheets inside and outside. Tongue-and-groove interlock, fully steel-clad
    Ceiling Lights Upper left and right sides each have 9 fixtures (18 total). Each fixture uses 4 PHILIPS 22W LED tubes
    Side Lights Lower left and right sides each have 11 fixtures (22 total). Each fixture uses 4 PHILIPS 22W LED tubes. Installed in cross upper-lower configuration
    Plenum 600 mm high. Cross and longitudinal beams made from galvanized bent steel, powder-coated for durability.
    Ceiling Filter C-shaped steel support with oil-painted finish. Sub-high-efficiency F5 Grade (EN779) filter, model YS-600G.
    Makeup Air Units
    Frame Size 2,200 × 1,600 × 2,400 mm (L × W × H)
    Cabinet Materials Welded 50 × 50 mm square-tube frame with PU insulation.
    Motor and Fan Internal-mounted motors, 2 pcs, each 7.5 kW, total 15 kW. Double-intake centrifugal fan YDW5.6M, airflow 42,000 m³/h.
    Makeup Air Control Belimo NUM230 10N electric actuator for fresh-air volume/pressure control.
    Pneumatic Actuator Controls air-valve opening/closing during spraying or baking.
    Heat Exchanger One unit, 232 kW, made of 1.5 mm SUS304 stainless steel (1Gr18Ni9Ti). Multi-cycle round-tube radiator with safety pressure-relief port
    Burner Riello RG5S diesel burner, heating output 260,000 kcal/h, qty:1. Includes 1 m stainless chimney, 3 m bent galvanized chimney,and rain cap
    Filtration Pocket pre-filter C16-300, G3 Grade (EN779). Fiberglass filter PA-50, G3 Grade (EN779)
    Exhaust Air Units
    Frame Size 1,600 × 1,600 × 1,850 mm (L × W × H)
    Cabinet Materials Welded 50 × 50 mm square-tube frame with EPS insulation
    Motor and Fan Belt-drive motor with European-type taper-sleeve pulley, qty:1. Motor power 11 kW. Double-intake centrifugal fan TAE-710H, airflow 36,000 m³/h
    Exhaust Air Control Manual actuator for VCD air-valve open/close
    Filtration Fiberglass filter PA-50, G3 Grade (EN779). Activated-carbon media in M-shaped filter frame
    Control System
    System functions include spraying, heat-spraying, baking, baking time setting, lighting control, fault indication, temperature control, power switch,emergency stop, hour meter, temperature limiter, ammeter, voltmeter, pressure gauge, pressure alarm, and reduced-voltage starter for the exhaust section.

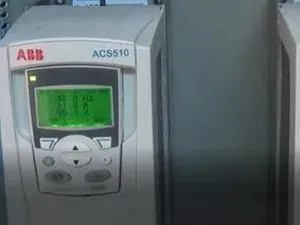

    • VFD ControlVFD Control

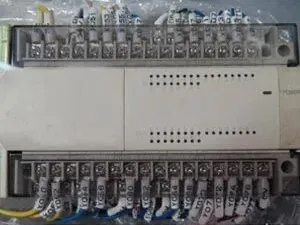

    • PLC ControlPLC Control

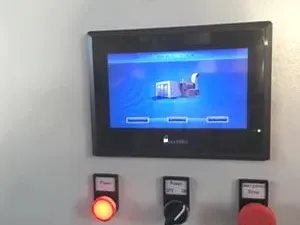

    • Touchscreen ControlTouchscreen Control

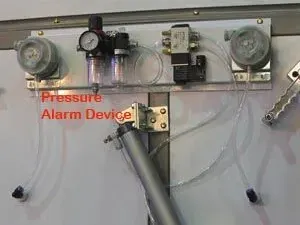

    • Automatic Pressure AlarmAutomatic Pressure Alarm
    Optional Configurations
    Structure

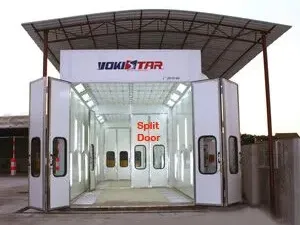

    Split Booth

    Split Booth

    The spray booth can be configured with a dividing door system, allowing the interior to be separated into two sections.
    Depending on the project layout, you can choose between a folding door or an electric roller door for this split configuration.

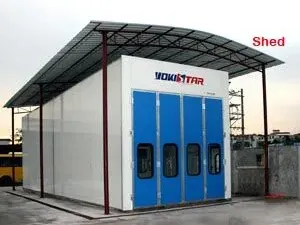

    Outdoor Booth

    Outdoor Booth

    When indoor space is limited, an outdoor spray booth becomes a practical solution.
    An exterior protective structure can be added around the spray booth to shield it from rain, wind, and other harsh weather conditions, ensuring stable performance throughout the year.

    Auxiliary Equipment

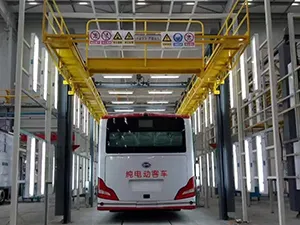

    3-Axis Movement Platform

    3-Axis Movement Platform

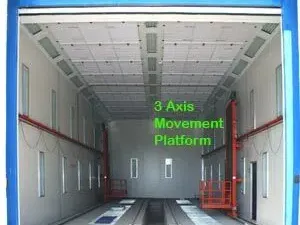

    The 3-axis movement platform provides easier and safer access to higher areas inside large spray booths, especially when working with buses, trucks or oversized components. Its three-direction movement system gives operators stable and efficient reach at elevated positions.

    Heat Recuperator

    Heat Recuperator

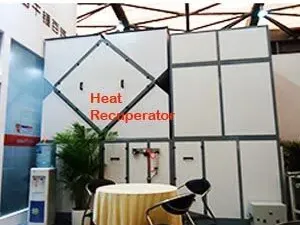

    The heat recuperator allows the system to reuse part of the hot air that would normally be exhausted. This recirculation helps reduce energy consumption during operation, providing a more efficient heating process inside the spray booth.

    Cases

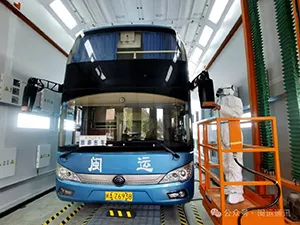

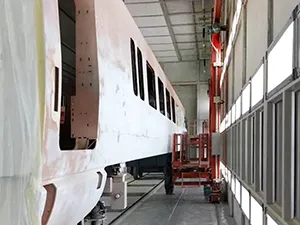

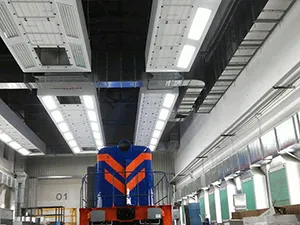

    • Bus & Truck Spray Booth

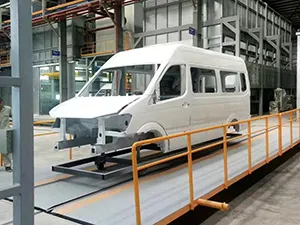

    • Bus & Truck Spray Booth

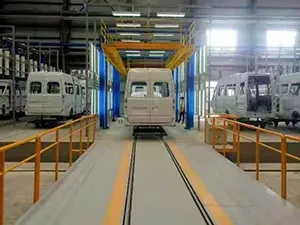

    • Bus & Truck Spray Booth

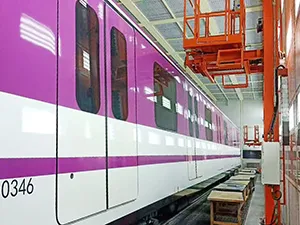

    • Bus & Truck Spray Booth

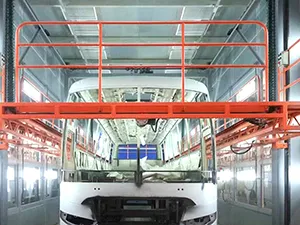

    • Bus & Truck Spray Booth
    • Bus & Truck Spray Booth
    • Bus & Truck Spray Booth
    • Bus & Truck Spray Booth
    Related Products
    We’re Here to Help

    Fill in the form below and our specialists will reach out to assist you.

    Browse Equipment by Category

    Bus and truck paint booths can be equipped with gas, diesel or electric heating, either as a single option or as a mixed setup. For example, a typical configuration may use a 232 kW stainless-steel heat exchanger together with a Riello RG5S diesel burner rated at 260,000 kcal/h. The heating capacity is enough for curing buses and trucks, incluso when the surfaces are large or the coating layer is thicker.

    These booths follow EN779 filtration standards and can use filters such as G3 and F5. They can also be fitted with activated-carbon adsorption and RCO (regenerative catalytic oxidation) systems, giving VOC removal rates above 90%. For safety, the design includes explosion-proof components, gas detectors and a linked CO₂ fire-suppression system. All these features help the booth meet environmental requirements and maintain safe operation throughout the process.

    The booth uses an automatic temperature control system with an accuracy of about ±2°C. Maintaining a steady temperature is important as it allows the coating cure evenly, so the paint adheres better and dries smoothly, without any noticeable issues. When the heat fluctuates too much, large panels can develop cracks or uneven areas, so this level of control plays an important role in maintaining a smooth and consistent finish on buses and trucks.
