    Portable spray booths with retractable enclosure for painting hard-to-move workpieces

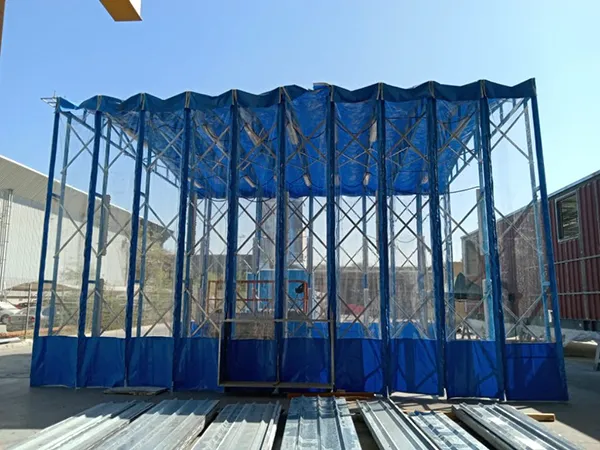

    Retractable paint booths use a sliding metal frame and a PVC-coated enclosure to form a temporary area for spraying. The structure extends to create a closed workspace and folds back after the painting work is finished, leaving the floor space available again. It is a suitable option for workshops that deal with heavy or large parts, since the booth can be moved to the workpiece instead of relocating the part.

    Request a Quote
    Advantages

    Compared with fixed paint booths, retractable paint booths offer several the following advantages:

    • The initial investment is lower because the frame and enclosure cost less than insulated wall panels, and no civil construction is required.
    • Floor space is used more efficiently. The booth expands only during spraying and stays folded the rest of the time, which helps save valuable workshop area and reduces rental or construction costs. This is especially helpful for facilities with limited space, such as dealerships or repair shops in urban areas.
    • Different workpiece sizes can be handled, as the length, width and height are usually customizable or adjustable through multiple retractable sections. This allows the structure to fit anything from passenger cars to large construction equipment.
    • It adapts to various site conditions. It can be installed in a standard workshop, in buildings with limited height, or even in semi-outdoor areas as long as the ground is reinforced.
    • One workstation can be used for different tasks. The same area can switch between repair work, bodywork or painting, improving how the space is used throughout the day.
    Customer Case
    • Open Face Paint Booth
    • Open Face Paint Booth

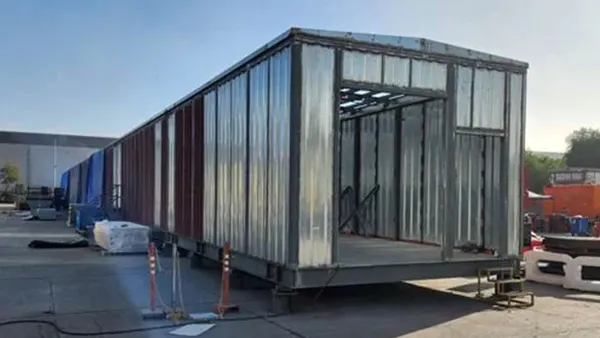

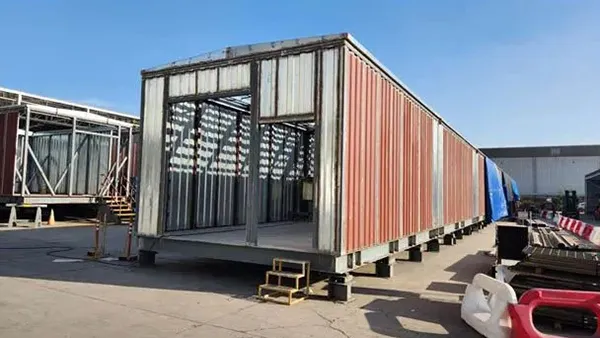

    A retractable paint booth was customized for a large workpiece used in mineral power stations in Chile. The workpiece the client needed to coat had a maximum length of 60m and cannot be moved, so a retractable structure was required to meet the painting process on site.

    The paint booth was designed with an inner size of 10 m × 7 m × 5.6 m, which fits a workpiece measuring 5 m in width and 4.5 m in height. The exhaust extraction system could move freely along both sides and was usually positioned on the left or right depending on the spraying area. It was equipped with a 15 kW motor that provided an air velocity of around 0.3 m/s at the extraction surface. Fiberglass filters and filter paper were used to capture overspray, and activated carbon helped reduce paint odor.

    A fully enclosed configuration can also be supplied for projects that need a more controlled environment. This option adds full sidewalls and roof panels to create a closed spraying space, improving overspray control and airflow management when required.

    Related Products
    We’re Here to Help

    Fill in the form below and our specialists will reach out to assist you.

    Browse Equipment by Category

    A retractable paint booth is helpful in tight spaces because it doesn’t stay open all the time. It’s only extended while spraying, and once the job is done, it folds back so the space can be used for other tasks. That means the booth doesn’t occupy the space permanently, and the workshop can move things around and use the area more freely for everyday work.

    A retractable paint booth can be built with custom length, width and height, or designed with multiple sliding sections. With these adjustments, the structure can open wide for large industrial equipment or stay smaller for passenger-car jobs. With those adjustments, a single booth can handle all kinds of workpieces, so there’s no need to prepare separate areas for different sizes.

    A retractable paint booth can be shared across different types of work. The same area can switch between repair work, body panel preparation or coating tasks, depending on what the workshop needs at the moment. This reduces the downtime of single-purpose stations and helps the workshop make better use of limited space.
