IR curing lights for even heat transfer and rapid drying of putty and paint surface

Infrared curing lamps are built for mobility, and the smooth-rolling casters make it easy to move them between the workshop floor, the spray booth or any prep area where quick drying is needed.

The heating effect comes from 304 stainless-steel reflectors, which deliver strong thermal efficiency and bounce more than 80% of the heat back toward the surface. This keeps the drying process steady and allows the heat to settle evenly across the surface being treated.

Each unit includes a digital timer for simple, reliable control. For jobs that need a bit more precision, optional distance and temperature sensors can be added. These additions give operators a safer working setup and help the drying process run more smoothly with consistency.

Request a Quote

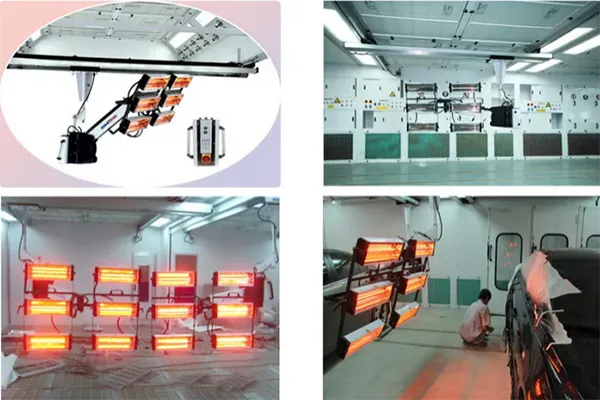

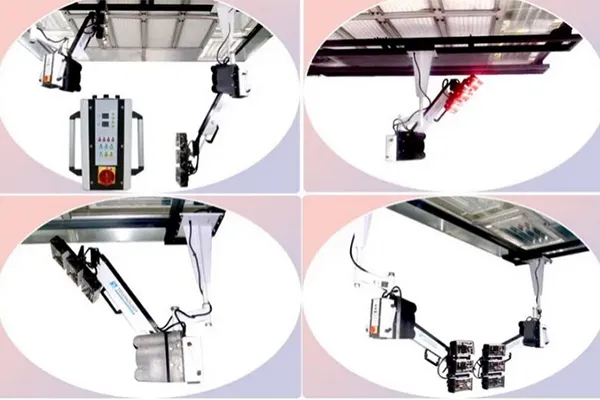

Ceiling Moveable Paint Curing IR Lamps

YS-D302

3 × 1 kW
Drying area: 0.8 × 0.6 m²
Drying distance: 0.5–0.8 m
Temperature rise time: 5–15 min (20℃ to 80℃)
Lamp length: 480 mm
Maximum curing time: 99 min
Four preset programs for putty, clear coat, base coat and water-based paint
Flash-off function
Optional temperature controller
Four ceiling rails: 6.8 m (vertical) and 3.7 m (horizontal), adjustable according to the working area size

YS-D601

6 × 1 kW
Curing area: 2 × 0.6 m² per cassette
Drying distance: 0.5–0.8 m
Temperature rise time: 5–15 min (20℃ to 80℃)
Lamp length: 480 mm
Maximum curing time: 99 min
Four preset programs for putty, clear coat, base coat and water-based paint
Flash-off function
Optional temperature controller
Four ceiling rails: 6.8 m (vertical) and 3.7 m (horizontal), adjustable according to the working area size

Floor Moveable Paint Curing IR Lamps

Model No.	PL-2B	PL-2E	PL-3E	PL-3ES	PL-3TD	PL-6ES
Type	Two-Cassette		Three-Cassette			Six-Cassette
Voltage	220 – 240 V, 50/60 Hz		220 – 240 V, 50/60 Hz			220-240 V, 50/60 Hz
Power	2 kW		3 kW			6 kW
Bake Temperature	40℃ - 100℃
Bake Area	800 x 800 mm		1200 x 1000 mm			2000 x 1000 mm
Bake Time	0 – 60 min		0 – 99 min			0 – 99 min
Bake Power	-	30% - 100%	35% - 99%	35% - 99%	10% - 99%	35% - 99%
Tube Length	500 mm	500 mm	500 mm			500 mm
Gross Weight	19.3 kg	3.8 kg	53 kg	53 kg	54 kg	73 kg

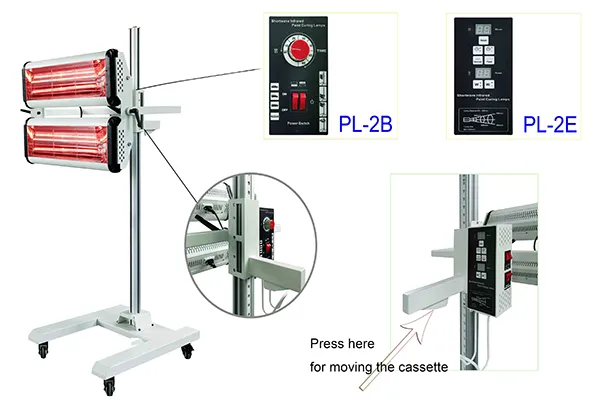

PL-2B&2E

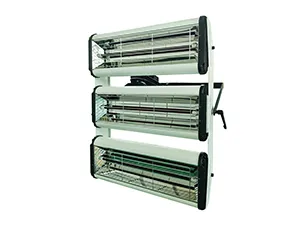

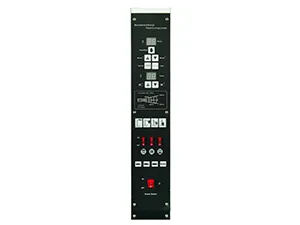

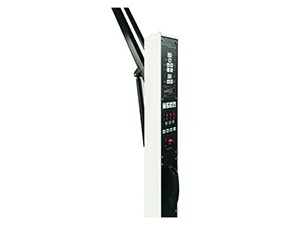

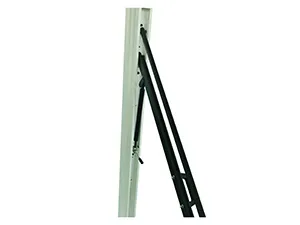

PL-3E

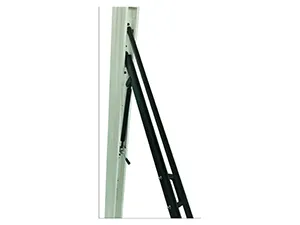

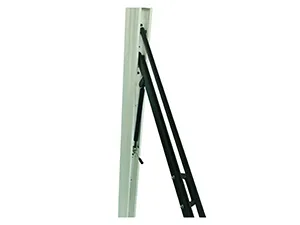

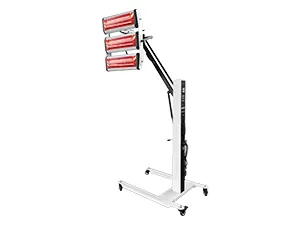

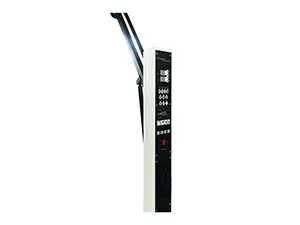

PL-3ES

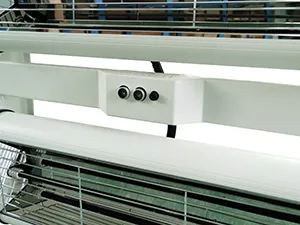

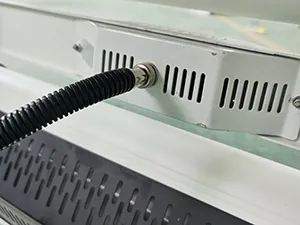

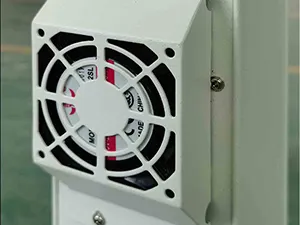

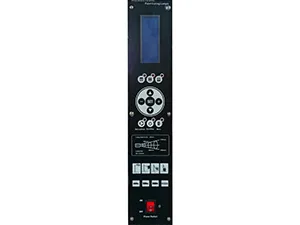

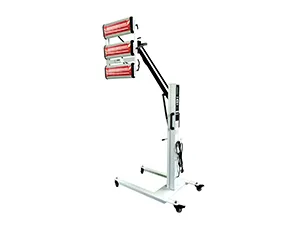

PL-3TD

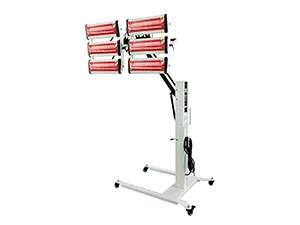

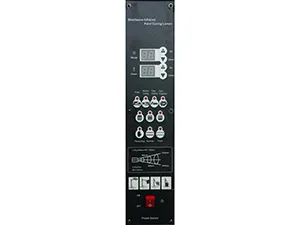

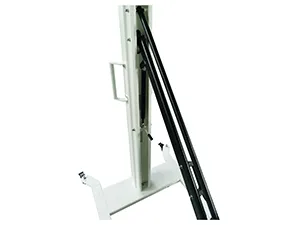

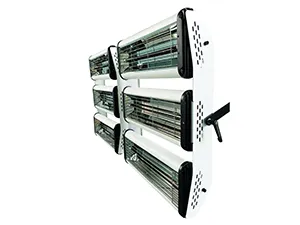

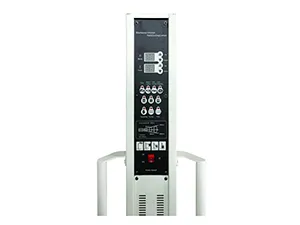

PL-6ES

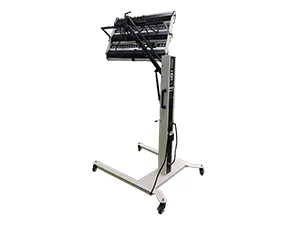

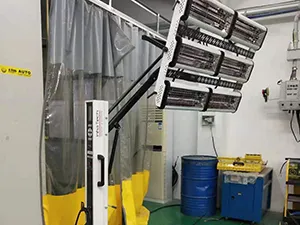

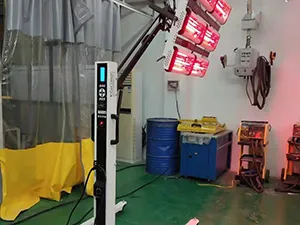

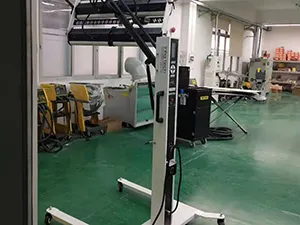

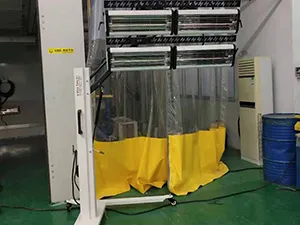

PL-6TD (688USD)

What advantages do infrared curing lamps offer in mobility and heat efficiency?

The infrared curing lamps use 304 stainless-steel reflector panels, which direct more heat toward the workpiece and improve energy use. They also come with smooth-rolling casters, so the lamps can move easily between the workshop, the spray booth and the prep area. The lamp can be moved right up to the area that needs heat, so the curing stays consistent no matter which workstation is being used.
