Automotive Paint Booth (High-Class Paint Booth)

Industrial spray booths for car refinishing

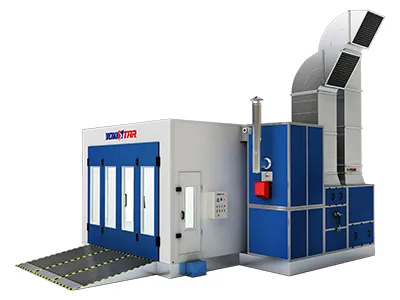

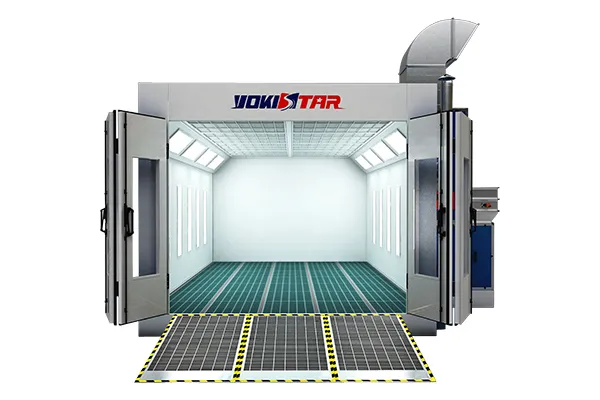

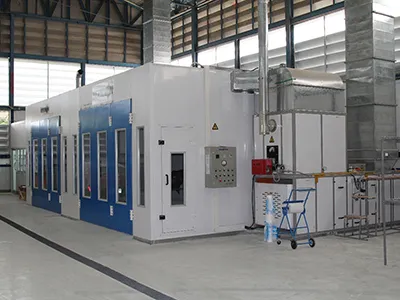

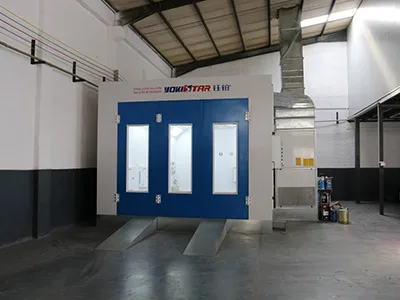

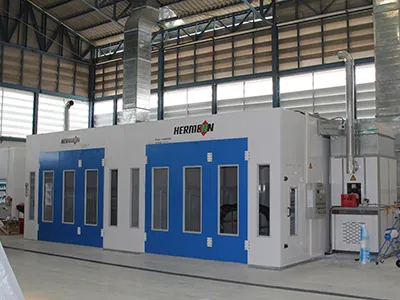

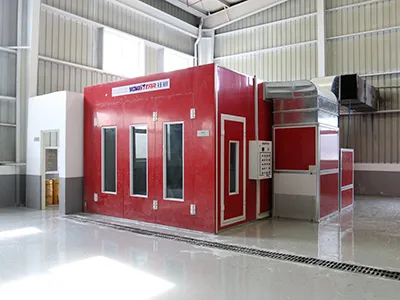

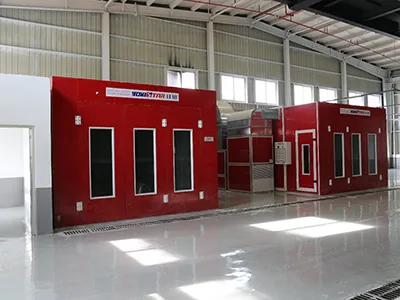

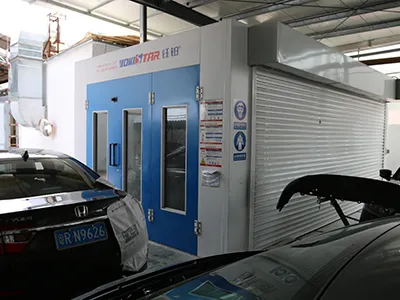

The Kalux series is the high-class option in this line of automotive paint booths. It has stronger airflow, a cleaner interior layout and better lighting, which makes the workspace more comfortable for technicians handling detailed refinishing work.

Downdraft automotive paint booths are useful for car refinishing because the air flows cleanly and directly from the ceiling to the floor. The air flows in one direction from the ceiling to the floor, which keeps the temperature more stable and makes it easier to paint and cure. Thanks to the airflow moving downward, overspray and solvent vapors leave the paint booth faster, which keeps the painted surface clean and makes the area safer for the operators. Side-draft booths usually need more energy to reach the same result. A downdraft booth can use about 20–30% less because the heat stays in the area where the work is done instead of spreading around. The initial investment is higher, but the paint finish on the vehicle is more uniform, rework is reduced, and the technicians can move through the process with more ease.

Request a Quote

Model Comparison

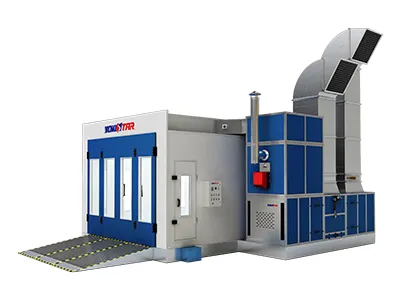

Kalux-O

Motor and Fan (Makeup Air Units)

Motor type: motor mounted inside the fan housing
Qty: 1 pc
Single motor power: 7.5 kW
Total power: 7.5 kW
Fan type: double-intake centrifugal fan (YDW-5.6M)
Total air capacity: 20,000 m³/h

Motor and Fan (Exhaust Air Units)

Motor type: motor mounted inside the fan housing
Qty: 1 pc
Single motor power: 7.5 kW
Total power: 7.5 kW
Fan type: double-intake centrifugal fan (YDW-5.6M)
Total air capacity: 20,000 m³/h

Exhaust Air Filtration

Fiberglass filter: G3 grade (EN779), type PA-50
Granular active carbon (KC-8.0) in “M-shape” filter frame

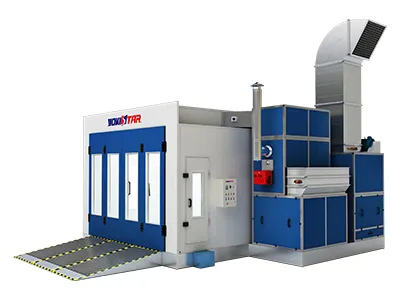

Kalux-B

Motor and Fan (Makeup Air Units)

Motor type: belt drive
Qty: 2 pcs
Single motor power: 4 kW
Total power: 8 kW
Fan type: double-intake centrifugal fan (TAE-400-H)
Total air capacity: 25,000 m³/h

Motor and Fan (Exhaust Air Units)

Motor type: belt drive
Qty: 1 pc
Single motor power: 7.5 kW
Total power: 7.5 kW
Fan type: double-intake centrifugal fan (TAE-560-H)
Total air capacity: 25,000 m³/h

Exhaust Air Filtration

Fiberglass filter: G3 grade (EN779), type PA-50
Granular active carbon in “column-shape” filter frame

Kalux-T

Motor and Fan (Makeup Air Units)

Motor type: direct drive
Qty: 1 pc
Single motor power: 7.5 kW
Total power: 7.5 kW
Fan type: single-intake turbo fan
Total air capacity: 25,000 m³/h

Motor and Fan (Exhaust Air Units)

Motor type: direct drive
Qty: 1 pc
Single motor power: 7.5 kW
Total power: 7.5 kW
Fan type: single-intake turbo fan
Total air capacity: 25,000 m³/h’

Exhaust Air Filtration

Active carbon filter in “pocket-shape”, F5 grade (EN779), type C16-200

Main Configuration

Base Structure
Floor Arrangement	Full grilles made of 30×4 mm flat bar and 8 mm twisted steel with a galvanized finish Loading capacity is 500 kg per wheel, including the floor-filter support frame Full ramp made of grilles, measuring 3,000 × 2,000 mm (W × L)
Cover Plate	Bent galvanized-steel cover plate, 300 mm high
Supporting Frame	Galvanized square-tube steel frame, 40 × 80 mm (W × L)

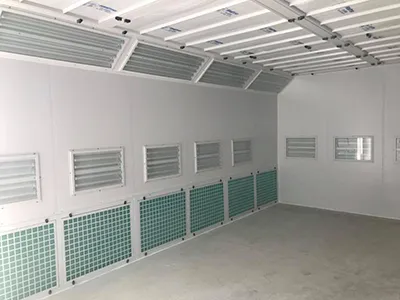

Floor Filter	Fiberglass filter installed on filter frame, G3 grade (EN779), filtering area 26.91 m²

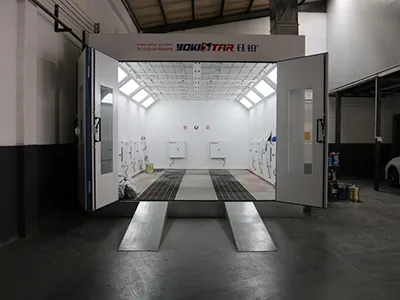

Booth Body
Entrance Door	4-leaf door, size 3,200 × 2,600 mm (W × H), bent-steel structure without exposed edge, tempered-glass windows, color-steel frame
Personnel Door	1 pc, size 700 × 2,000 mm (W × H), tempered-glass window, square color-steel frame
Wall Panel	50 mm thick, 1,000 mm wide, EPS insulation, covered with 0.426 mm color-steel sheet. Tongue-and-groove interlock panel, both sides color-steel
Roof Panel	Made of 0.6 mm bent galvanized-steel plate
Ceiling Light	10 fixtures on left and right upper position. PHILIPS LED 22 W per fixture. Total 40 tubes
Side Light	10 fixtures on left and right wall panel. PHILIPS LED 22 W per fixture. Total 40 tubes
Plenum	450 mm high, made of bent galvanized-steel panels, powder-coated
Ceiling Filter	Aluminum profile support net with F5 ceiling filter (EN779), type SP-600G

Makeup Air Units
Cabinet Frame	1.5 mm bent galvanized steel, aluminum-alloy three-way connector
Makeup Air Control	Belimo NMU230 10N actuator or manual damper (depending on model) for fresh-air control
Pneumatic Actuator	Controls air-valve opening/closing during spraying or baking
Heating System	232 kW heat exchanger made of 1.5 mm stainless steel 1Gr18Ni9Ti (SUS304) with a round multi-cycle radiator pipe and an anti-explosion layout. Riello RG5S diesel burner with a heating output of 260,000 kcal/h. Includes a 1 m stainless-steel chimney and a 3 m galvanized-steel chimney with two elbow sections.
Makeup Air Filter	Pre-filter, G3 grade (EN779)

Exhaust Air Units
Cabinet Frame	1.5 mm bent galvanized steel, aluminum-alloy three-way connector
Exhaust Air Control	Belimo NMU230 10N actuator for air-valve opening/closing. Equipped with 4 m straight duct, 1 pc 90° elbow duct, and 1 pc 30° elbow duct
Control System	Includes: pressure gauge, temperature controller, baking timer, hour counter, spray switch, heat-spray switch, bake switch, left light switch, right light switch, start switch, power switch, emergency stop
