    Automotive Paint Booth (Economic Paint Booth)

    Industrial spray booths for car refinishing

    The Yubase series includes several economic automotive paint booths designed for workshops that are beginning operations or focusing on standard refinishing work. Paint booths in this series can be equipped with sidelights when additional brightness is needed inside the cabin during preparation and spraying. The exhaust section supports different motor options depending on the required airflow: 3 kW, 4 kW, 5.5 kW or 7.5 kW.

    • Internal dimensions
      6,900 × 3,900 × 2,650 mm (L × W × H)
    • External dimensions
      7,000 × 5,350 × 3,400 mm (L × W × H)
    Request a Quote
    Model Comparison
    Automotive Paint Booth (Economic Paint Booth)

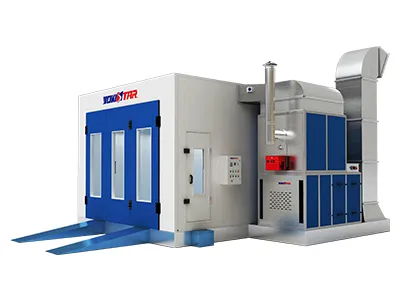

    Yubase-O

    Motor and Fan (Makeup Air Units)

    • Motor type: motor mounted inside the fan housing
    • Qty: 2 pcs
    • Single motor power: 3 kW
    • Total power: 6 kW
    • Fan type: double-intake centrifugal fan (YDW-4.5M)
    • Total air capacity: 21,000 m³/h
    Automotive Paint Booth (Economic Paint Booth)

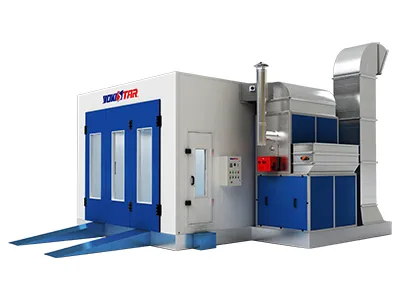

    Yubase-B

    Motor and Fan (Makeup Air Units)

    • Motor type: belt drive
    • Qty: 2 pcs
    • Single motor power: 3 kW
    • Total power: 6 kW
    • Fan type: double-intake centrifugal fan (TAE-355-H)
    • Total air capacity: 21,000 m³/h
    Automotive Paint Booth (Economic Paint Booth)
    Yubase-T

    The Yubase-T paint booths use a direct-drive motor and a single-intake blower, which results in a different exterior layout.

    Motor and Fan (Makeup Air Units)

    • Motor type: direct drive
    • Qty: 1 pc
    • Single motor power: 7.5 kW
    • Total power: 7.5 kW
    • Fan type: single-intake turbo fan
    • Total air capacity: 25,000 m³/h
    Main Configuration
    Base Structure

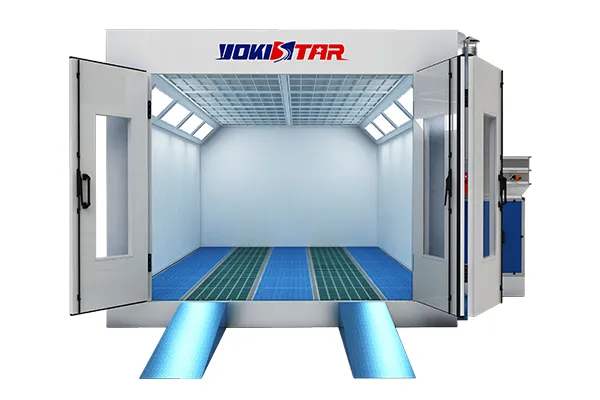

    Floor Arrangement
    • 2 rows of grilles made of 30×4 mm flat bar and 8 mm twisted steel, surface-galvanized
    • Loading capacity is 500 kg/wheel, equipped with a supporting frame for the floor filters.
    • 3 rows of indented plates with painted surface treatment
    • 2 ramps, each size 750 × 2,000 mm (W × L)
    Cover Plate Made of bent galvanized steel, 300 mm high
    Supporting Frame Made of galvanized square steel tubes, size 40 × 80 mm (W × L)
    Floor Filter Fiberglass filter placed on the filter frame, G3 grade (EN 779), with a filtering area of 10.35 m²
    Booth Body
    Entrance Door 3-leaf door, size 3,000 × 2,600 mm (W × H), made of bent steel panels without edge covering, with tempered glass embedded in a square steel frame made of color steel
    Personnel Door 1 unit, size 700 × 2,000 mm (W × H), with tempered glass embedded in a square frame made of color steel
    Wall Panel 50 mm thick and 1,000 mm wide, with EPS insulation and covered with 0.326 mm thick color-steel sheets. Tongue-and-groove interlock structure; both sides covered with steel
    Roof Panel Made of 0.6 mm thick bent galvanized steel plate
    Ceiling Light 10 fixtures on left and right upper positions. 4 PHILIPS LED 22 W tubes in each fixture, 40 tubes in total
    Plenum 450 mm high; all spare parts made of galvanized bent steel and coated with white powder for long-term use
    Ceiling Filter Supporting net made of aluminium profile; sub-high-efficiency filter, F5 grade (EN779), type SP-600G
    ​Makeup Air Units​
    Cabinet Frame Made of 1.5 mm thick bent galvanized steel with aluminium alloy three-way connectors
    Makeup Air Control Belimo NMU230 10 N actuator used to regulate fresh air volume
    Pneumatic Actuator Controls the air valve to open or close depending on whether the booth is in spraying or baking mode
    Heating System
    • 200 kW heat exchanger made of 1.5 mm stainless steel 1Gr18Ni9Ti (SUS304), with round multi-cycle radiator pipes and a built-in anti-explosion safety port
    • Riello G20 diesel burner; heating capacity: 200,000 kcal/h
    • 1 m stainless steel chimney; 3 m bent galvanized steel chimney; 2 pcs aluminium elbows
    Makeup Air Filter Pre-filter, G3 grade (EN779)
    Exhaust Air Unit
    Delivered without the motor-and-fan assembly. Includes 4m of straight ducting, one 90° elbow duct and one 30° elbow duct for basic exhaust routing
    Control System​
    Includes: pressure gauge, temperature controller, baking timer, hour counter, spray switch, heat-spray switch, bake switch, left light switch, right light switch, start switch, power switch, emergency stop

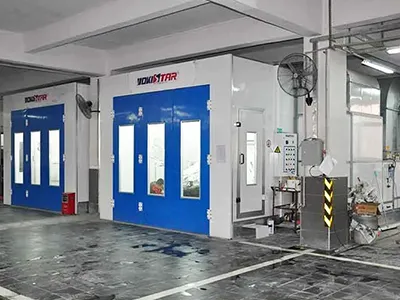

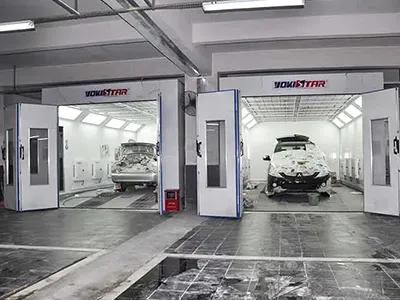

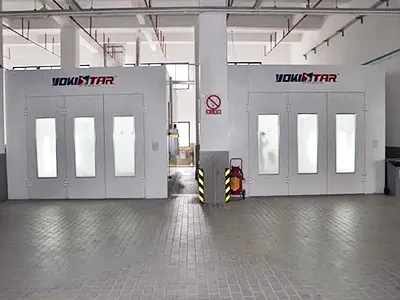

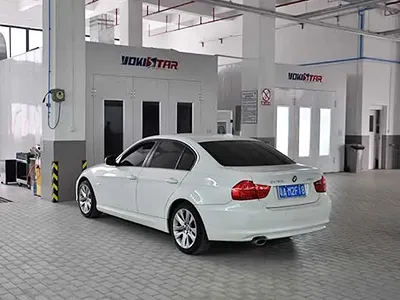

    Cases
    • Automotive Paint Booth (Economic Paint Booth)
    • Automotive Paint Booth (Economic Paint Booth)
    • Automotive Paint Booth (Economic Paint Booth)
    • Automotive Paint Booth (Economic Paint Booth)
    Related Products
    We’re Here to Help

    Fill in the form below and our specialists will reach out to assist you.

    Browse Equipment by Category

    The range includes spray booths used in automotive repair, bus and truck workshops, aircraft coating, marine and yacht finishing, industrial equipment painting and furniture coating. It also covers open-face booths for basic spraying tasks, tabletop booths for small parts, retractable booths for tight spaces and spray & bake booths designed for water-based paint. Each paint booth type is designed to match different workpiece sizes and coating requirements.

    A paint booth works by pulling in filtered air and moving it across the area where the coating is applied, so the overspray is taken away and dust can’t settle on the surface. The airflow can be vertical or horizontal, depending on the booth design, and helps maintain a clean environment by preventing dust and other particles from entering the coating area. Some models also offer temperature and humidity control to support proper paint application and curing. Depending on the configuration, the booth may handle only spraying operations or combine spraying and drying functions in the same enclosure.

    Yubase-O uses two 3 kW motors installed inside the cabin together with dual-inlet centrifugal fans. Having the motors inside keeps the design simple and helps the airflow stay steady while the booth is running.

    Yubase-B also uses two 3 kW motors with dual-inlet centrifugal fans, but it runs with a belt-drive system. Since the belts and pulleys are exposed and simple to access, it's easier to carry out regular maintenance and any replacement can be handled quickly.

    Yubase-T works a little differently from the other Yubase models. It runs with one 7.5 kW motor that drives a turbine fan directly, which gives it a stronger airflow. Because of this fan setup, the outside layout looks a bit different compared with the other models. Since there’s no belt in between, the power goes straight to the fan, so the airflow responds quicker when the booth is running.
